Spool Bearing Differences – Core vs Edge vs Apex Compared
Spool Bearing Differences – Core vs Edge vs Apex Compared
Our spool bearings differ in material composition, ball quality, cage system, ABEC precision class, and optimal tuning for your casting weight. Each class is designed for a specific application. The decisive factor is not just the ABEC rating but the entire construction and its tuning to your setup.
Apex – ABEC 9 with S30 Ceramic Balls and PEEK Ribbon Cage
Apex bearings are our uncompromising high-performance option. They consist of ABEC 9 precision-made stainless steel rings, equipped with S30 ceramic balls and a PEEK (Polyether Ether Ketone) ribbon cage.
S30 ceramic balls enable extremely low friction and very high speeds. The PEEK ribbon retainer is a high-performance cage that ensures stability, temperature resistance, and reliable ball guidance at very high speeds.
- ABEC 9 precision standard
- S30 ceramic balls for maximum rotational pleasure
- PEEK ribbon cage for stability at high speeds & minimal friction
- Very fast spool acceleration
Thanks to this design, the spool of your baitcasting reel starts very quickly and reaches extremely high speeds, especially in the lower casting weight range.
Sweet spot casting weight: 2 to 60 g
If you mostly fish well above this range, a slightly more robustly tuned design makes sense. In this case, switching to the Edge class is recommended.
Edge – ABEC 9 Hybrid Ceramic Bearings with S25 Balls
Edge bearings are also based on an ABEC 9 precision standard. They use S25 ceramic balls combined with precision-made steel rings and a Japanese ribbon retainer.
Compared to Apex, Edge is tuned to be a bit more versatile. The design offers high speed capability combined with greater mechanical stability for a broader range of applications.
- ABEC 9 precision standard
- S25 ceramic balls for high speeds
- Japanese ribbon retainer for stable ball guidance
- Balanced performance tuning
Edge bearings are available in two versions:
- With Orange Seal: Additional protection against dirt and moisture
- Without Seal: Minimal resistance for maximum rotational pleasure
Sweet spot casting weight: 5 to 100 g
If your setup regularly exceeds this range significantly, the Core class is the technically more suitable choice.
Core – ABEC 5 Stainless Steel Bearings for High Load
Core bearings consist of ABEC 5 precision-made stainless steel bearings with a sturdy ball and cage construction. They are designed for durability, continuous use, and consistent performance.
Here, ABEC 5 does not mean lower quality but a more robust tuning compared to high-speed hybrid ceramic bearings.
- ABEC 5 precision standard
- Robust stainless steel construction
- High mechanical load capacity
- Consistent performance under load
Sweet spot casting weight: 8 g to over 200 g
Casting Weight is the Deciding Factor
All our spool bearings are high-quality and designed for high speeds. The key difference lies in tuning to your actual lure range.
Those who mostly fish very light lures benefit from maximum startup dynamics. Those covering a broader range should choose a more versatile tuning. Those who consistently cast heavy should rely on robust stability.
The best performance is achieved when bearing class and casting weight match.

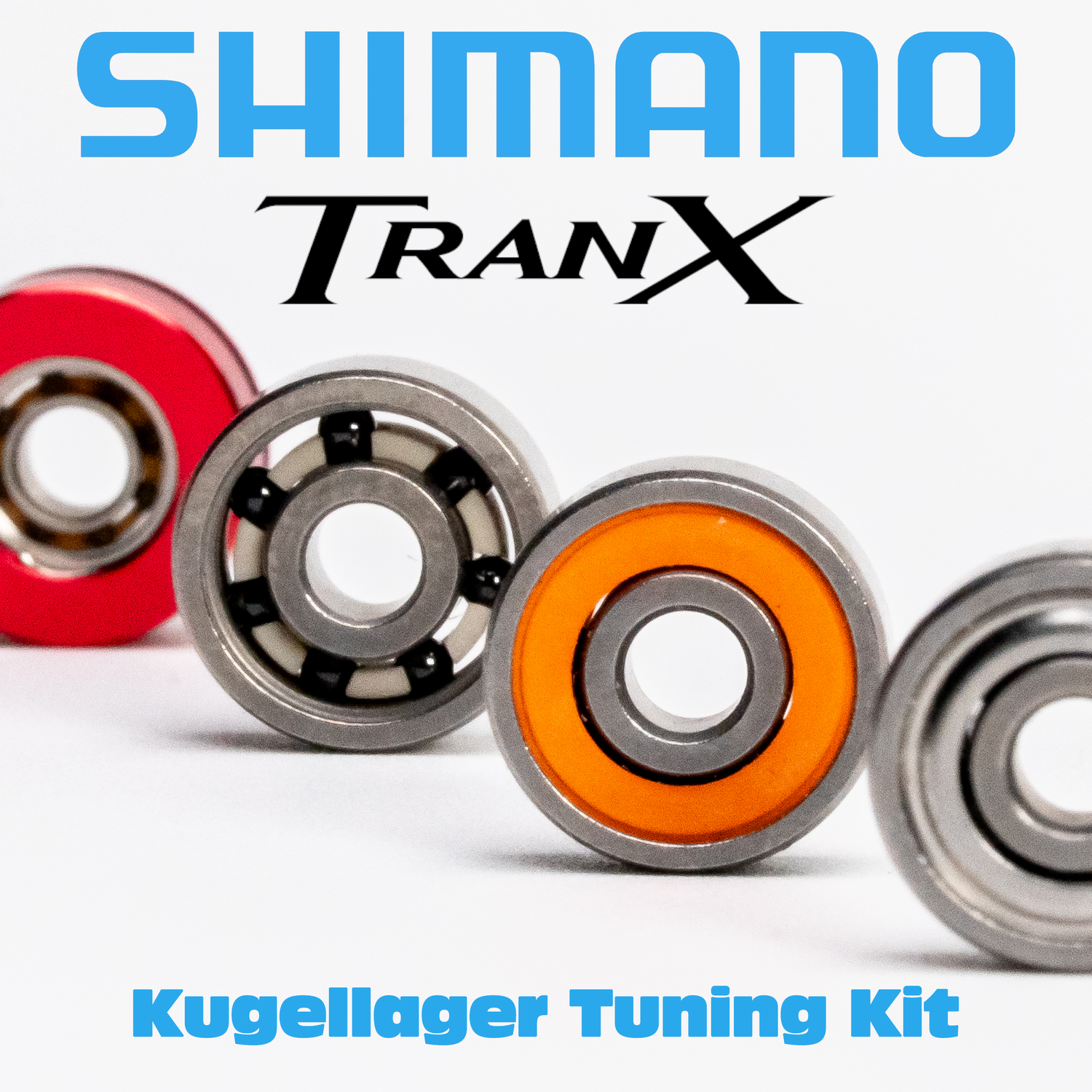

Ball Bearing Tuning Kit for Shimano Tranx
Ball Bearing Tuning Kit for Shimano Tranx
RL-TNG Ball Bearing Tuning Kit Shimano Tranx – Contents & Benefits
With the RL-TNG Ball Bearing Tuning Kit Shimano Tranx, your Reel runs significantly freer because the bearings reduce friction and improve spool rotation. Additionally, the gear runs smoother and more evenly, allowing you to achieve longer casts and crank more relaxed.
- Ceramic hybrid bearings (ABEC 9) – less resistance, thus more control; also ideal for heavy lures.
- Highspeed bearings (ABEC 9) – precise axle rotation, resulting in easier cranking.
- Stainless steel bearings (ABEC 5) – smooth operation and durable, even if you often fish in saltwater.
Ball bearing tuning for Shimano Tranx – why it's worth it
Many only replace one bearing; however, it only truly benefits when both sides run equally. With this Tranx bearing set, you work more efficiently because the Reel runs freer, lasts longer, and simply feels better.
- ✅ Greater casting distance due to smoother spool rotation
- ✅ Less vibration and annoying noise
- ✅ Less effort needed when cranking, resulting in more fun
- ✅ Longer durability of all parts, plus less maintenance
Tranx Bearing Set – Installation in 3 steps
- Open the sideplate – depending on the model with a lever or screw.
- Remove the spool and check the bearings, as their position varies depending on the design.
- Replace bearings and reinstall – for perfect free-spinning.
Tip: You can fish the hybrid bearings dry for more speed or lightly oiled for more quietness. Also, they can be easily re-oiled later if you want more smoothness.
Technical Details – Shimano Tranx Bearing Kit
- 2x Spool Bearings ABEC 9 – hybrid of ceramic and steel, therefore maximum spool free-spinning.
- 2x Piniongear Bearings ABEC 9 – high-speed bearings for fast and precise axle rotation.
- 1x Pinion-Support ABEC 5 – stabilizes the axle, resulting in less vibration.
- 1x Wormshaft ABEC 5 – ensures clean winding of the line and even laying.
Compatibility – Shimano Tranx
- Fits: Shimano Tranx 300, 400, and 500
The RL-TNG Bearing Tuning Kit Shimano Tranx fits immediately because it is precisely made for these models. Also, you don't need any additional parts.
Accessories for Shimano Tranx Bearing Upgrade
Pin on the Reel? Then use the Pin Remover – safe, easy, and without damage.
Conclusion – RL-TNG Bearing Tuning Kit Shimano Tranx
More reach, less friction, and a smoother operation – this makes your Tranx a real workhorse. Plus, you save effort when cranking and gain more control on the water.
